M500

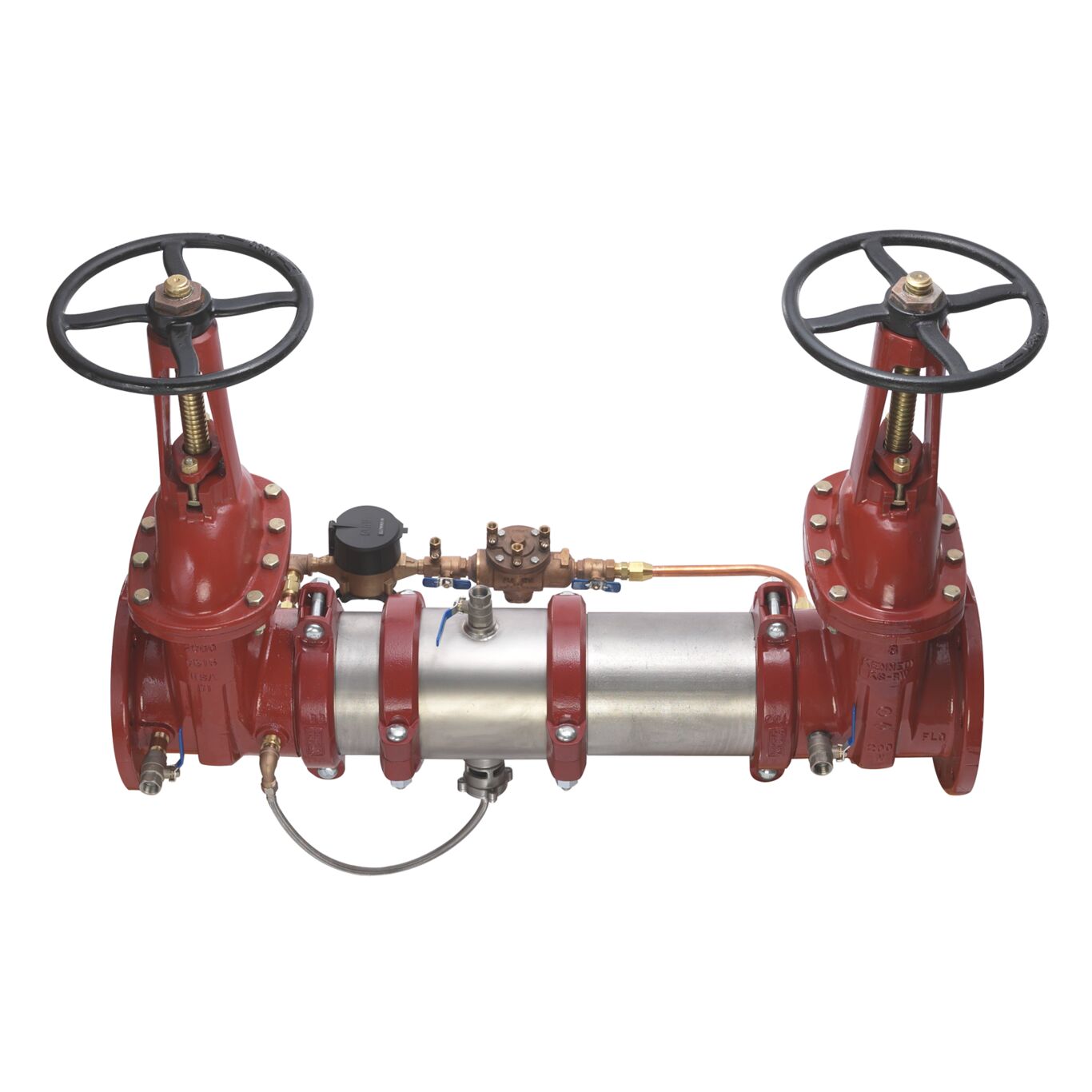

Stainless Steel Reduced Pressure Detector Assembly Backflow Preventers
Series M500, M500N, M500Z Reduced Pressure Detector Assemblies to prevent the reverse flow of fire protection system substances from being pumped or siphoned into the potable water supply. The M500 incorporates a meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of a compact, stainless steel body with stainless steel internal parts, two check valves, a pressure-differential relief valve, shutoff valves, torsion spring checks and relief valve, and bronze, nickel-plated test cocks. Series M500, M500N, M500Z features the certified lowest pressure loss, is 70% lighter than traditional designs and is ideal for health hazard cross-connections, such as on fire sprinkler systems. Check with local water authorities for installation requirements. Maximum Working Pressure: 175psi (12.06 bar).
Features
- Protects drinking water supplies against dangerous cross-connections, plus detects loss due to underground water leaks or unauthorized water usage
- Extremely compact design is significantly lighter than traditional designs
- Patented link check provides low pressure loss
- Entire valve body and closure sleeve manufactured from 304 stainless steel
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
