LFN55B-M1
Lead Free* Water Pressure Reducing Valves, Sizes: 1/2 ‒ 1 IN

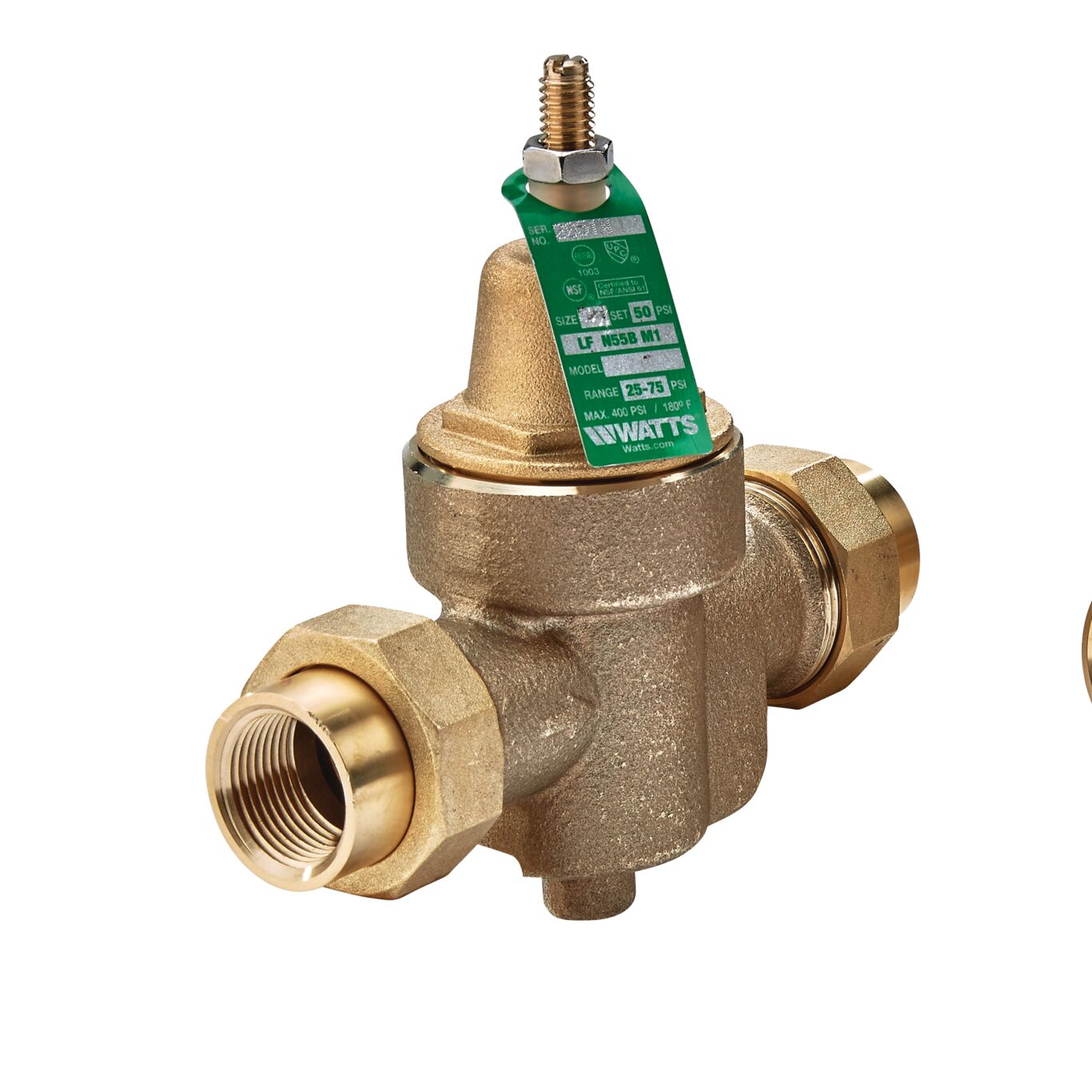

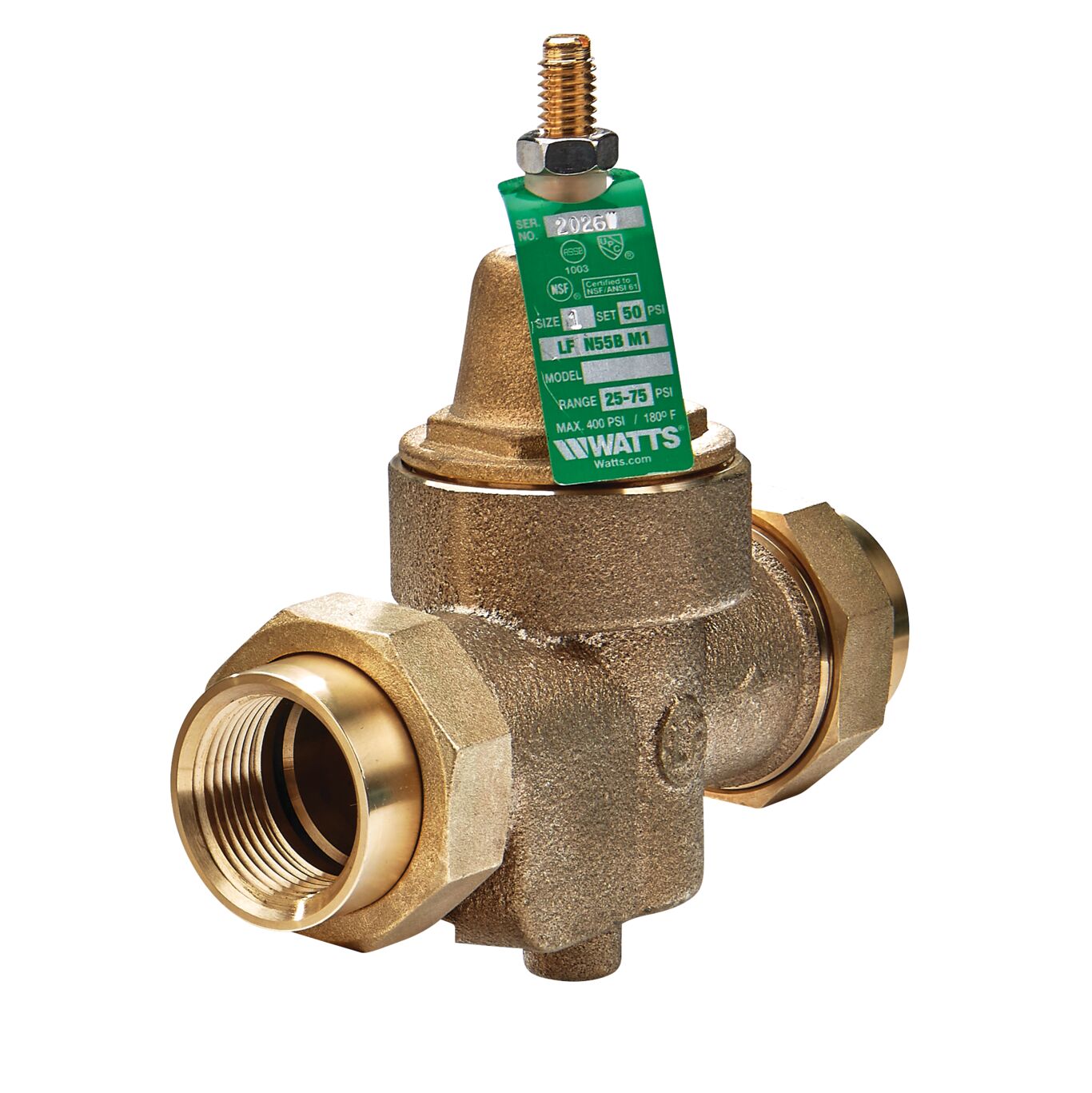

Series LFN55B-M1 Water Pressure Reducing Valves are engineered for use in both commercial and residential plumbing systems to regulate incoming water pressure, helping to protect system components and reduce overall water consumption. Constructed with a Lead Free* brass body, the valve includes an integral stainless steel strainer, a thermoplastic seat, and a bronze sealed spring cage, making it suitable for waterworks pit installations. It also features a thermal expansion bypass for added system protection.

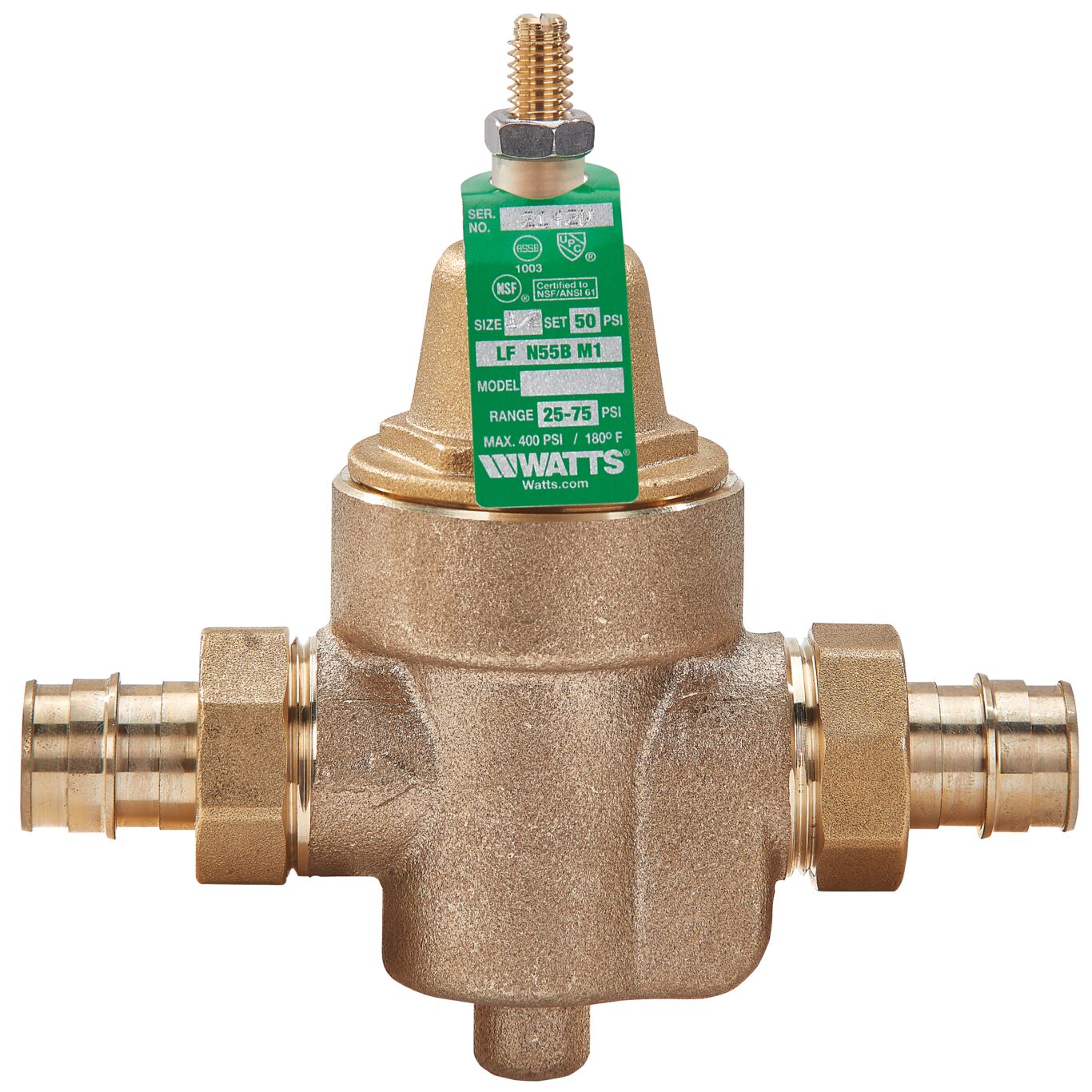

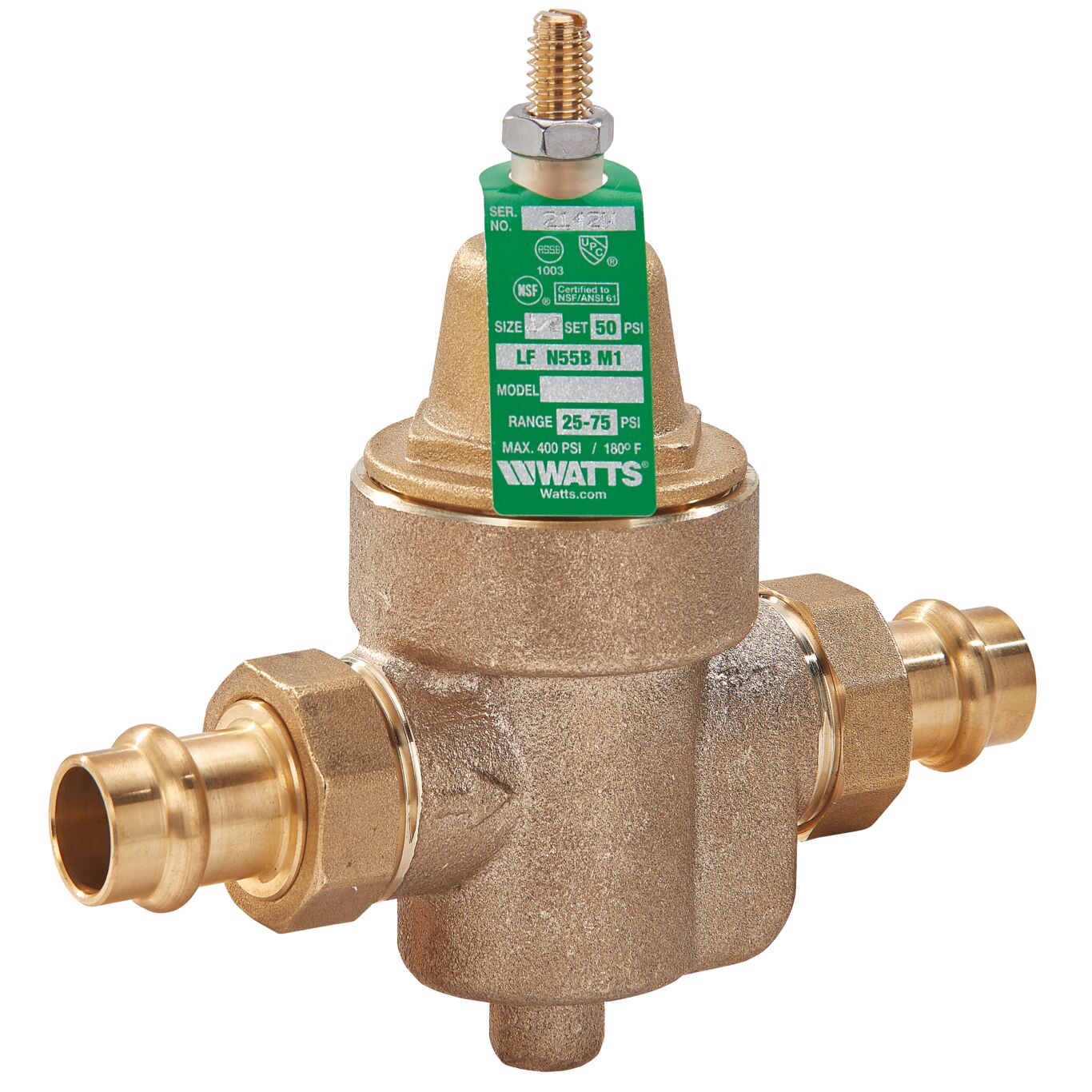

The LFN55B-M1 is available with a variety of end connection options, including threaded, solder, PEX, quick-connect, CPVC, press, and cold expansion PEX (ASTM F1960), offering flexibility for different installation requirements. Valves come preset at 50 psi (345 kPa), with an adjustable reduced pressure range from 25 to 75 psi (172 to 517 kPa), and supports a maximum working pressure of 400 psi (27.6 bar). For enhanced functionality, models with gauge port tapping are available, allowing for convenient downstream pressure measurement and system diagnostics.
Features
- Parts are easily and quickly serviceable without removing valve from line
- Bypass feature controls thermal expansion pressure
- Sealed spring cage for accessible outdoor or pit installations
- Integral stainless steel strainer to stop debris
- Models available with gauge port tapping to allow downstream pressure measurements
Literature
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
